Product Overview
- 1600 lumens maximum output, 170 meters maximum beam distance.
- Uses one Luminus SST40-GEN2 white LED, one Luminus SST20-GEN2 high-CRI neutral white LED, and one
- OSRAM 2835 red LED; with a lifespan of 50,000 hours each.
- Spotlight, floodlight and red light sources assist various lighting needs in various complex outdoor scenarios.
- Top mode switch enables quick locking and mode switching.
- Large side switch for simple and convenient operation.
- Powered by a replaceable ARB-L18-4000 battery and compatible with two CR123A batteries.
- Hidden USB Type-C charging port with inner waterproof treatment.
- Premium type HAIII hard-anodized anti-abrasive finish.
- Made of durable A6061-T6 aluminum alloy material.
- IP68-rated protection and 2 meters impact resistance.
Technical Parameters
| MODE | Spotlight Mode | Floodlight Mode | Red Light | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| ANSI FL-1 RATING | Turbo | High | Medium | Low | High | Medium | Low | High | Low | Flash |
| OUTPUT | 1600 Lumens | 600 Lumens | 130 Lumens | 30 Lumens | 350 Lumens | 70 Lumens | 5 Lumens | 20 Lumens | 3 Lumens | 3 Lumens |
| RUNTIME | 3h 15 min* | 5h | 25h | 74h 30min | 9h | 25h | 292h | 39h | 185h | 370h |
| DISTANCE | 170 Meters | 103 Meters | 48 Meters | 23 Meters | 36 Meters | 14 Meters | 4 Meters | 6 Meters | 3 Meters | / |
| INTENSITY | 7223cd | 2659cd | 575cd | 133cd | 326cd | 45cd | 3cd | 8cd | 3cd | / |
| IMPACT RESISTANCE | 2m | |||||||||
| WATERPROOF | IP68 | |||||||||
Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix through its laboratory testing using one Fenix ARB-L18-4000 Li-ion battery under the temperature of 21±3°C and humidity of 50% – 80%. The true performance of this product may vary according to different working environments and the actual battery used.
*The Turbo output is measured in a total of runtime including output at reduced levels due to temperature or protection mechanism in the design.
Size:
- 88mm
- 45.7mm
- 45mm
Weight:
- 173 g including battery and headband
Included with Your Light:

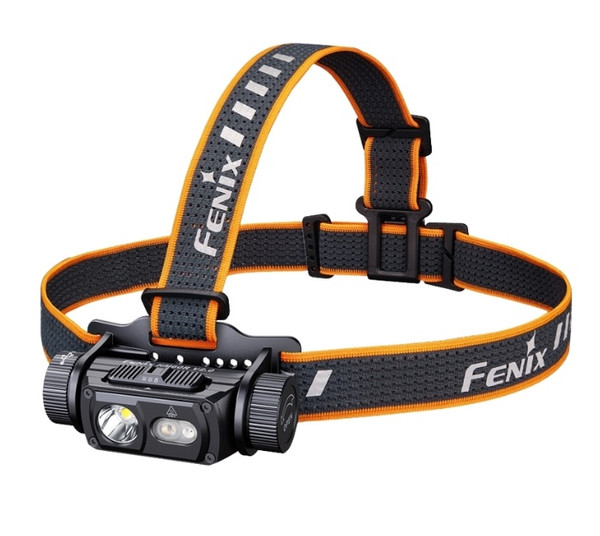

- Fenix HM60R V2.0 headlamp
- Fenix ARB-L18-4000 battery
- Type-C charging cable
- Spare O-ring
